JFP-185

Sonar

Black box design

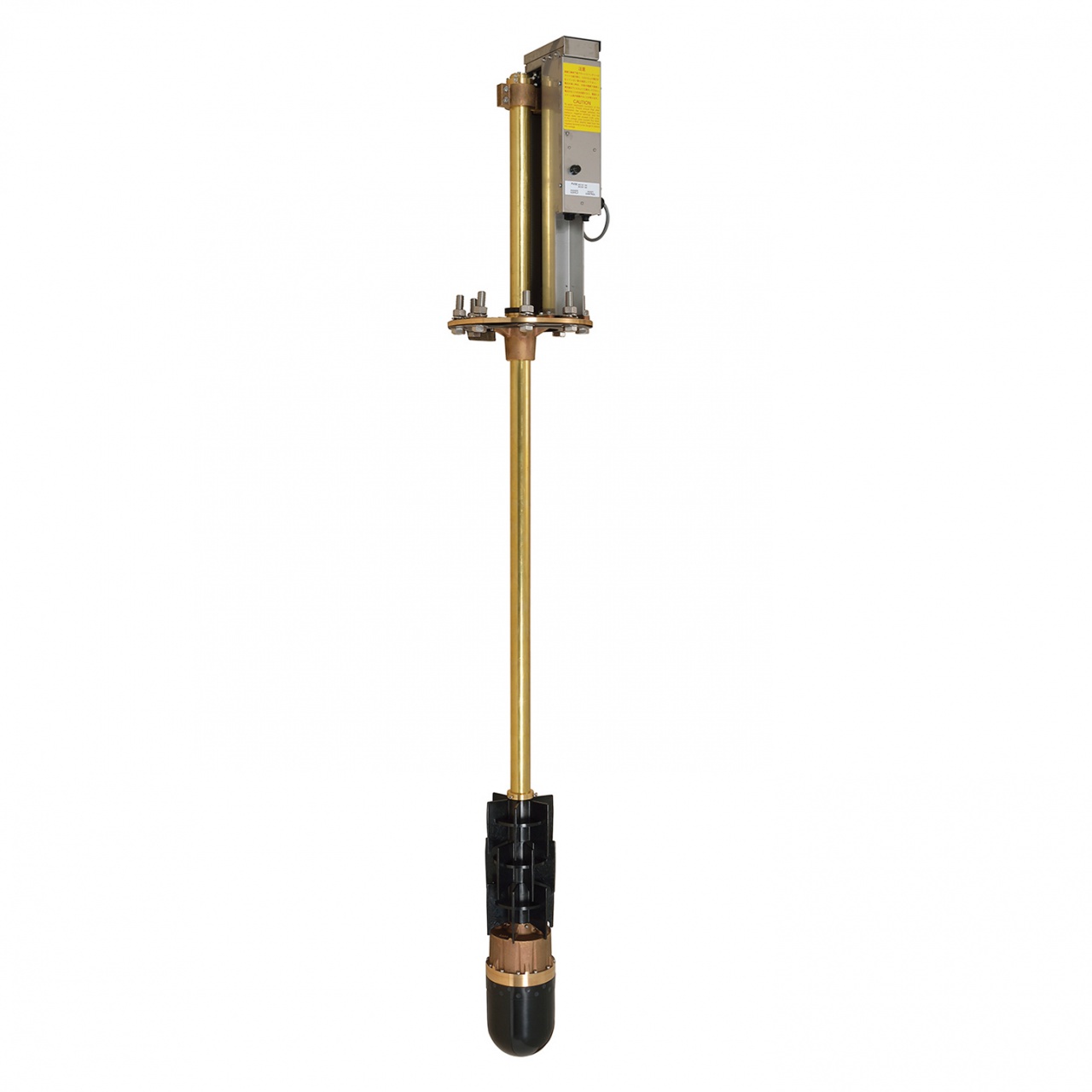

Space saving hoist unit
Easy operation
Enhanced presentation modes

Description

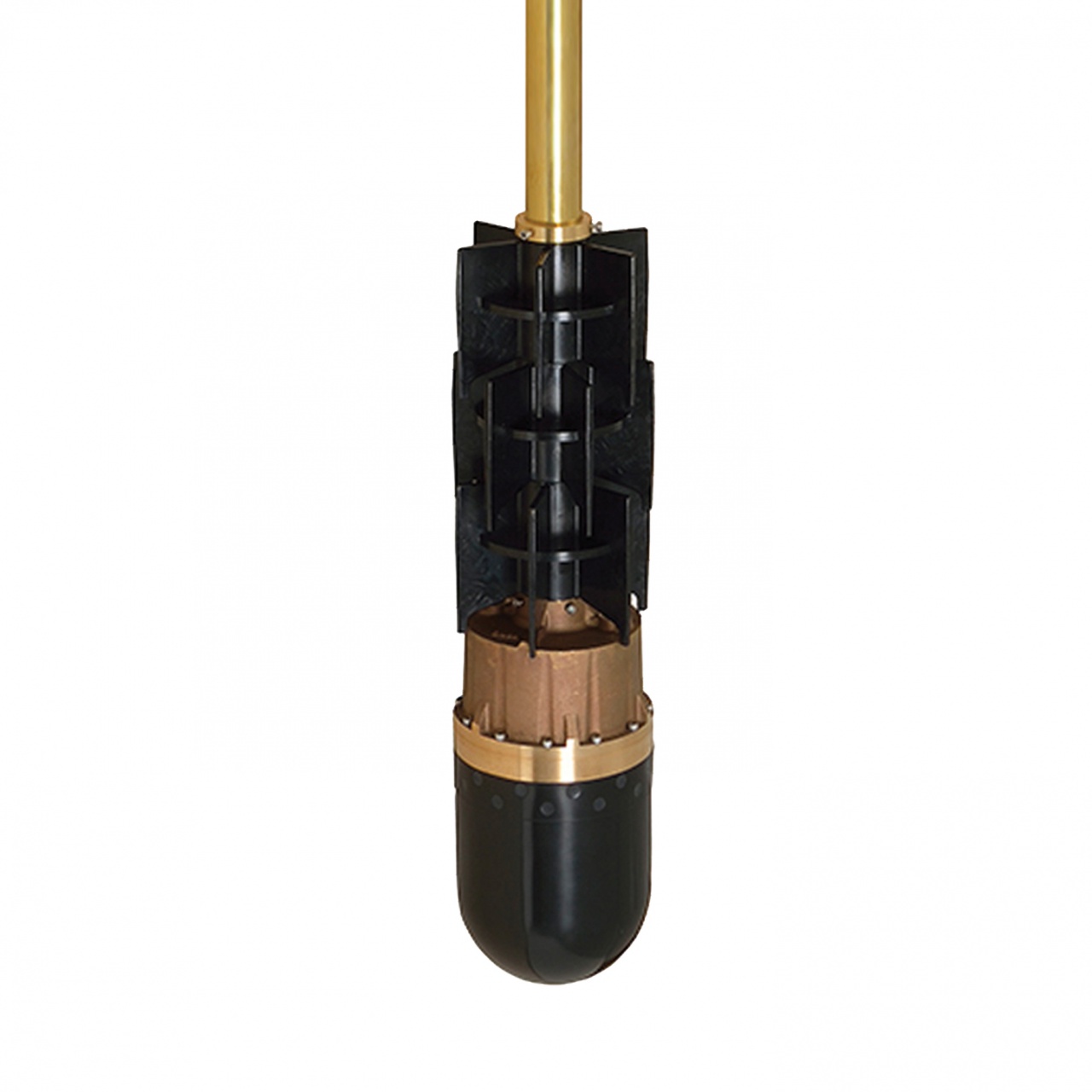

The JFP-185 sonar uses a wide band transducer. The most suitable output frequency in a band from 130 to 210 kHz can be selected in 0.1 kHz steps, depending on the fishing method and the target species in various depths. The flexible selection of frequencies also enables the fishing vessel to operate at a different frequency than those of surrounding vessels.

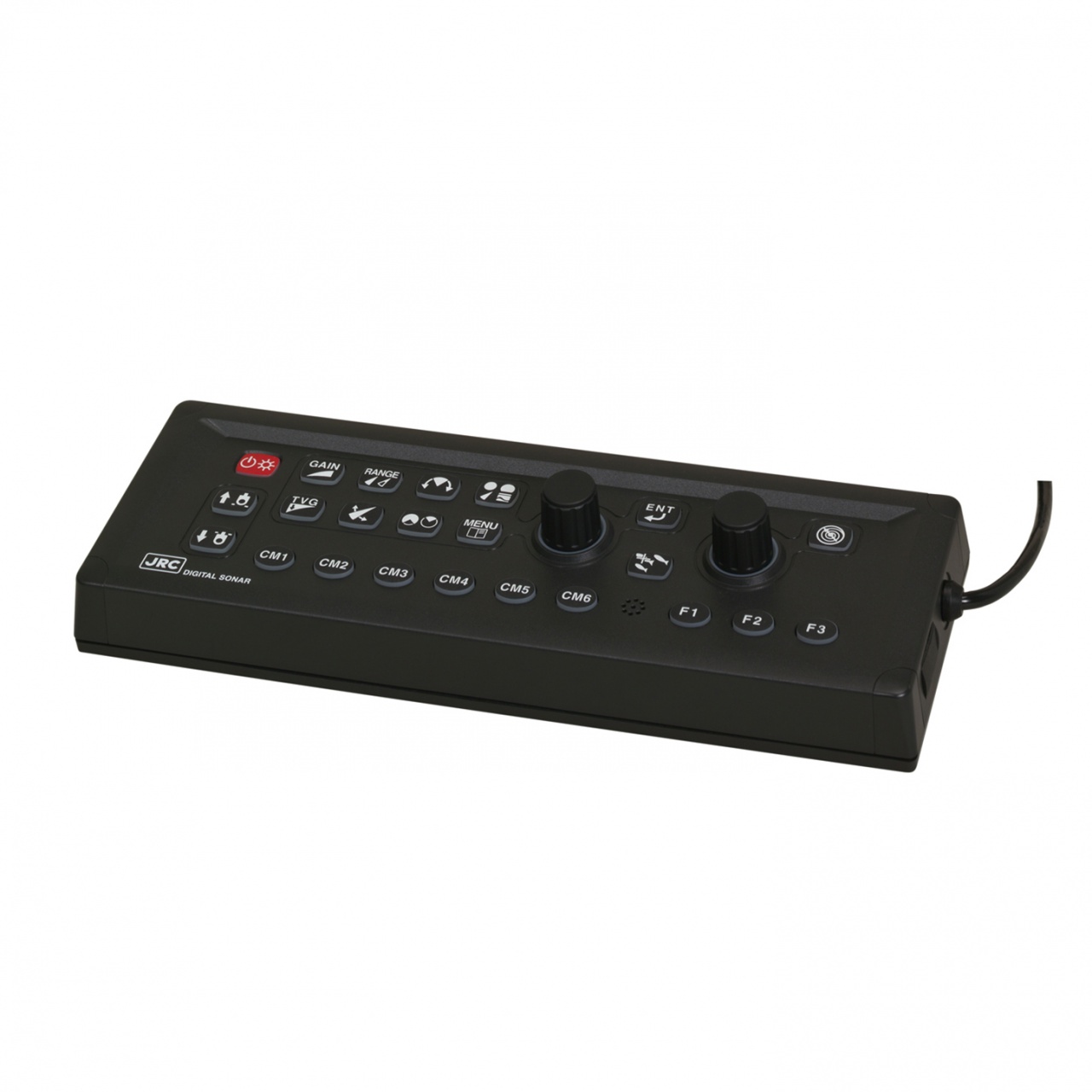

The sonar integrates multiple display modes, facilitating a valuable working environment by illuminating the underwater scene with a beam of sonic energy rotating through 360 degrees. The JFP-185 provides a range of display modes to suit the search task. The searchlight sonar consists of a compact processor, dedicated keyboard and high performance transducer, allowing for a flexible installation approach in confined spaces. You can choose your own display, as long as it supports VGA. The one-touch menu keys are conveniently backlit and are highlighted with the green color once selected, making operation extremely useful in low light settings.
